SCC
Movies place huge demands upon a loudspeaker, from alien invasions to a pin dropping, from a thunderous soundtrack to a gentle kiss - but the most important function is the accurate rendition of that most recognizable of sounds, the human voice, most of which is anchored in the middle of the screen.
Design
Reflecting the versatility and exhilarating performance of its new S-Series of loudspeakers, Magico’s SCC is designed to bring to the center channel of the home theater experience the same level of resolution, clarity, and emotional engagement that Magico loudspeakers have been bringing to music lovers for the past 15 years.
This elegant loudspeaker builds on the foundation laid by the S5 and entry-level S1. In common with all Magico creations, the SCC has been designed using advanced computer-aided technology along with our own customized software to minimize diffraction effects and internal resonance, while determining the ideal damping requirements.
Enclosure & Drivers
Meticulously crafted from 16-inch diameter extruded aluminum with half-inch thick walls similar to the S5, the curvilinear enclosure of the SCC provides the rigidity and mass necessary to ensure optimum performance from its four-driver, three-way acoustic suspension enclosure.
The driver complement consists of two newly-designed seven-inch woofers, Magico's famous proprietary six-inch Nano-Tec® midrange, and a Diamond Coated Beryllium diaphragm tweeter.
SPECIFICATIONS
Driver Complement:
1 x 1" Tweeter
1 x 6" Midrange
2 x 7" Bass woofer
Sensitivity: 89dB
Impedance: 4 Ohms
Frequency Response:
22 Hz - 50 kHz
Recommended Power:
50 watts

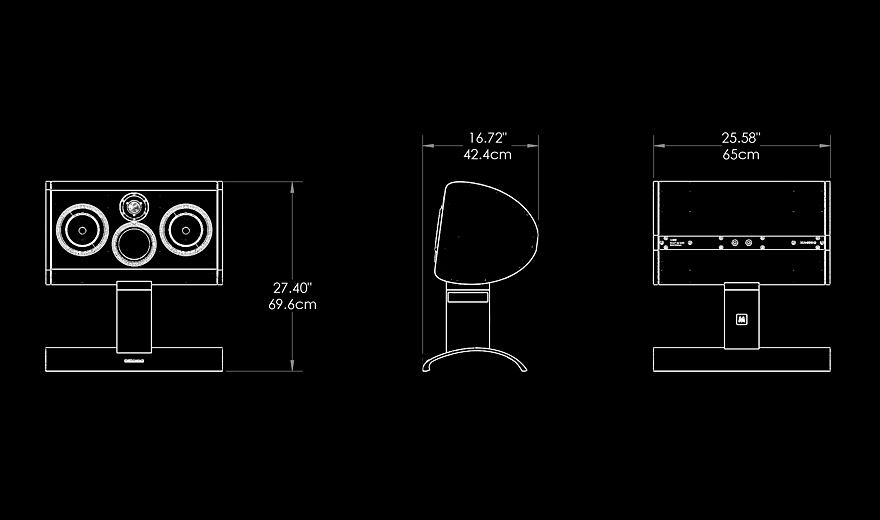

Dimensions (w/ Stand):
Tallest
27.42"H x 16.97"D x 25.58"W
(69.65cm x 43.10cm x 65cm)
Tall
22.91"H x 16.97"D x 25.58"W
(59.19 x 43.10cm x 65cm)
Flat
16.12"H x 16.97"D x 25.58"W
(40.94cm x 43.10cm x 65cm)
Weight: 160 lbs. (72.57 kg)
